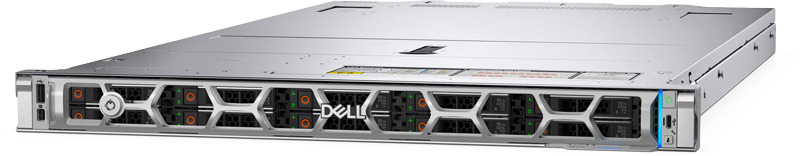

Dell PowerEdge R470

Boost Datacenter Efficiencies and Performance

The Dell PowerEdge R470 is a 1U, single-socket rack server engineered for high-performance computing with optimal power efficiency and balanced performance, driving cost savings and boosting data center productivity. Its advanced design maximizes rack utilization by offering more cores in a single socket enabling better performance in a smaller footprint while minimizing energy consumption. This makes it ideal for workloads like cloud scale web and app microservices, data services, virtualization, and scale-out database. Purpose-built for enterprise and scalable infrastructures, the PowerEdge R470 seamlessly integrates into existing environments. Equipped with an Intel® Xeon® processor with E-cores that are tailored for energy efficiency and performance-per-watt, offering both improved power efficiency and higher rack density. With GPU support, it further enhances computational power while reducing overall operational costs, especially on energy consumption impact. The server is available in rear I/O hot aisle and front I/O cold aisle configurations, with the front I/O cold aisle improving serviceability, reducing maintenance time, and enhancing overall efficiency, reliability, and uptime. Dell’s Smart Power and Cooling Technology, optimized for air cooling, significantly reduces energy consumption, delivering long-term operational savings and supporting sustainability goals.

• Base:
  PowerEdge R470 Server
• Form Factor:
  1U Rack Server
• Processor:
  One Intel® Xeon 6 E- core processor with up to 144 cores per processor or
  One Intel® Xeon 6 P- core processor with up to 86 Cores with R1S option
• Power Supplies:
  800 W Platinum 100-240 VAC or 240 HVDC
  1100 W Platinum/Titanium 100-240 VAC or 240 HVDC
  1500 W Titanium 100-240 VAC or 240 HVDC
  1400 W Titanium -48v DC
• Memory:
  16 DDR5 DIMM slot, supports RDIMM 4TB* max, speeds up to 6400 MT/s
  Intel® Xeon® 6 E-core processor - supports 1 TB max
  Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option - supports 4 TB max
  Supports registered ECC DDR5 DIMMs only
• Storage Controllers:
  Internal Controllers:
  PERC H365i, front PERC H965i, PERC H365i adapter, PERC H965i adapter

  External Controllers:
  HBA465e, H965e (RAID)

  Boot Optimized Storage Subsystem (BOSS-N1):
  HWRAID 1, 2 xM.2 NVMe SSDs, M.2 interposer with up to 2 x M.2 NVMe SSDs or USB
• Drive Bays:
  Front Bays:
  Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
  Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB
  Up to 8 x 2.5” SAS/SATA/NVMe (SSD) max 122.88 TB
  Up to 10 x 2.5” SAS/SATA/NVMe(SSD) (with 4 x 2.5 -inch universal) max 84.48 TB
  Up to 4 x 3.5” SAS/SATA max 96 TB

  Rear Bays:
  Up to 2 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB
• Embedded NIC:
  1 Gb dedicated BMC Ethernet port
• Dimensions:
  Height – 42.8 mm (1.69 inches)
  Width – 482 mm (19.0 inches)
  Depth with bezel – 816.92 mm (32.16 inches)
  Depth without bezel – 815.14 mm (32.09 inches)
  Depth without bezel (Front I/O Configuration) – 829.44 (32.09 inches)
• Embedded Management:
  iDRAC
  iDRAC Direct
  iDRAC RESTfull API with redfish
  RACADM CLI
  iDRAC Service Module
• Security:
  Cryptographically signed firmware
  Data at Rest Encryption (SEDs with local or external key mgmt)
  Secure Boot
  Secured Component Verification (Hardware integrity check)
  Secure Erase
  Silicon Root of Trust
  System Lockdown (requires iDRAC10 Enterprise or Datacenter)
  TPM 2.0 FIPS, CC-TCG certified
  Chassis Intrusion Detection
• OCP network options:
  Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional)
• GPU Options:
  Up to 4 x 75 W SW
• Ports:
  Front Ports:
  1 x USB 2.0 Type - C port
  1 x USB 2.0 Type A port (optional)
  1 x Mini-DisplayPort (optional)
  1 x DB9 Serial (with front I/O configuration)
  1 x Dedicated BMC Ethernet port (with front I/O configuration)

  Rear Ports:
  1 x Dedicated BMC Ethernet port
  2 x USB 3.1 Type A ports
  1 x VGA

  Internal:
  1 x USB 3.1 Type A port
• PCIe:
  Up to 4 Gen5 PCIe slots (x16 connectors)
  Slot 1 -1 x8 Gen5 Low Profile
  Slot 1 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
  Slot 4 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
  Slot 31 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
  Slot 32 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
• Fans:
  Up to 4 sets (dual fan module) hot swappable fans
• Cooling Options:
  Air cooling
• Bezel:
  Optional security bezel
• Operating Systems & Hypervisors:
  Canonical Ubuntu Server LTS
  Red Hat Enterprise Linux
  SUSE Linux Enterprise Server
  VMware ESXi
  Windows Server
  Windows Server Datacenter
