Dell PowerEdge R6625

Why pay full price when you can get hardware and ProSupport at half the cost!

Pre Rack IT offers Dell PowerEdge R6625 servers with significant cost savings compared to your rep or var. This can be especially attractive for businesses that are looking to stay within a tight budget or need to allocate funds to other critical areas of IT operations.

On average, the build time ranges from 3 to 5 days, whereas through Dell direct it could take weeks or even months.

Get Pricing Within 15 Mins!

Required fields are marked *

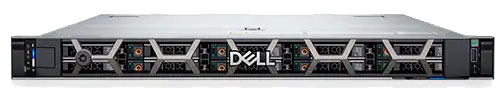

The Dell PowerEdge R6625 is a 1U, dual-socket rack server. Designed to be the backbone of your data center, this powerful server provides ample performance and flexible, low-latency storage options in a dense air or Direct Liquid Cooling (DLC) configuration.

Stay ahead of the curve

Delivering breakthrough innovation using the latest performance, density and optional acceleration for traditional and emerging workloads including high-performance compute (HPC), virtual desktop integration (VDI) and virtualization.

Extreme performance in a platform that grows with your business

  • Using AMD EPYC 4th generation processor to deliver up to 50% more core count per single socket platform in an innovative air or liquid-cooled chassis.
  • Enables DDR5 at 4800 MT/s memory and PCIe Gen5 with double the speed of previous Gen4 for faster access and transport of data optimizing application output.
  • Optional DLC is available to more efficiently cool high-performance processors.

Experience more virtual machine density to support the most demanding applications

  • Deliver more virtual machines per physical host using increased core count and higher memory footprint than previous generations.
  • Improve responsiveness or reduce app load time for power users with up to 3 x single-wide full-length GPUs.

Feature

Technical Specifications

Processor

Up to two AMD EPYC 4th Generation 9004 Series with up to 128 cores per processor

Memory

  • 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 4800 MT/s
  • Supports registered ECC DDR5 DIMMs only

Storage controllers

  • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
  • External HBAs (non-RAID): HBA355e
  • Software RAID: S160

Drive Bays

Front bays:

  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB
  • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
  • Up to 10 x 2.5-inchSAS/SATA/NVMe (HDD/SSD) max 153.6 TB
  • Up to 14 x E3.S NVMe direct drives max 107.52 TB
  • Up to 16 x E3.S NVMe direct drives max 122.88 TB

    Rear bays:

  • Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB
  • Up to 2 x E3.S NVMe direct drives max 15.36.8 TB

Power Supplies

  • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 1400 W Mixed Mode Platinum 100-240 VAC or 240 HVDC hot swap redundant
  • 1400 W Mixed Mode Titanium 277 VAC or 336 HVDC hot swap redundant
  • 1100 W Mixed mode 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W LVDC -48 — -60 VDC, hot swap redundant
  • 800 W Platinum 100—240 VAC or 240 HVDC , hot swap redundant

Cooling Options

  • Air cooling
  • Optional Direct Liquid Cooling (DLC)
    Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.

Fans

  • Standard (STD) fans/High performance Gold (VHP) fans
  • Up to 4 sets (dual fan module) hot plug fans

Dimensions

  • Height – 42.8 mm (1.685 inches)
  • Width – 482.0 mm (18.97 inches)
  • Depth – 822.89 mm (32.4 inches) with bezel

    809.05 (31.85 inches) without bezel

Form Factor

1U Rack server

Embedded Management

  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Manual
  • Quick Sync 2 wireless module

Bezel

Optional LCD bezel or security bezel

OpenManage Software

  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin
  • CloudIQ for PowerEdge plug in
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration with Windows Admin Center

Mobility

OpenManage Mobile

OpenManage Integrations

  • BMC Truesight
  • Microsoft System Center
  • OpenManage Integration with ServiceNow
  • Red Hat Ansible Modules
  • Terraform Providers
  • VMware vCenter and vRealize Operations Manager

Security

  • AMD Secure Encrypted Virtualization (SEV)
  • AMD Secure Memory Encryption (SME)
  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot
  • Secured Component Verification (Hardware integrity check)
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1 GbE LOM card (optional)

Network options

1 x OCP 3.0 card (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.

GPU Options

3 x 75 W SW



Technical Specifications

Ports

Front Ports

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0 • 1 x VGA

Rear Ports

  • 1 x Dedcated iDRAC Ethernet port
  • 1 x USB 3.0
  • 1 x USB 2.0
  • 1 x Serial (optional)
  • 1 x VGA (optional for Direct Liquid Cooling configuration)

Internal Ports
• 1 x USB 3.0 (optional)

PCIe

Up to three PCIe slots

  • Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length
  • Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length
  • Slot 3: 1 x16 Gen5 or1 x16 Gen4 Low profile, Half length

Operating System and Hypervisors

  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi

    For specifications and interoperability details, see Dell.com/OSsupport.

OEM-ready version available

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,visit Dell.com > Solutions > OEM Solutions.
