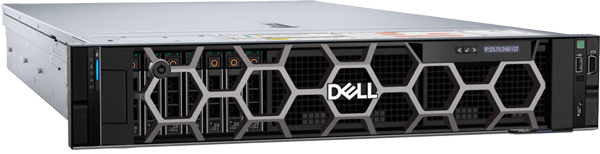

Dell PowerEdge R860
Dell PowerEdge R860
Why pay full price when you can get hardware and ProSupport at half the cost!
The PowerEdge R860 with a 2U air-cooled form factor and four (4) Intel Xeon® Scalable Processors enables businesses to accelerate a wide variety of core and business-critical applications including databases, analytics, and other datadriven applications.
On average, the build time ranges from 3 to 5 days, whereas through Dell direct it could take weeks or even months.
Get Pricing Within 15 Mins!
Required fields are marked *
- Product Details
- Specifications
Product Details
Maximize your core operations with powerful, dense compute foundation
- With a maximum CPU core count of 60 cores and the ability to support 64 DDR5 DIMMs for a total of 16TB of memory, the R860 is large enough to run in-memory databases and multiple applications.
- Scale up business needs with support for up to 24 NVMe drives, DIMMs, 8 PCIe Gen5 slots for I/O expansion, LOM, and industry standard OCP to enable customers flexible network connectivity.
- Enable fast 1:1 CPU-I/O communications with PCIe Gen5 adaptor support.
Purpose-built operations and workload performance
- Harness the latest generation technologies including DDR5 memory, PCIe Gen 5.0, and NVMe SSDs to maximize data transformation, support large in-memory databases, and generate faster insights to drive the business forward.
- Leverage new workload accelerators built into each Intel Xeon processor that are purpose-designed for peak performance in traditional and emerging business applications.
- Deploy quickly with slim 2U form factor, enabling IT organizations to consolidate more operations into fewer, more powerful servers, and high density in air-cooled environments.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
| Tech Specs & Customization | |
|---|---|
| Processor | Up to four 4th Generation Intel Xeon Scalable processors with up to 60 cores per processor and optional Intel® QuickAssist Technology |
| Memory | 64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s, supports registered ECC DDR5 DIMMs only |
| Storage Controllers | Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i External Controller: PERC H965e Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB External HBA (non-RAID): HBA355e Software RAID: S160 |
| Drive Bays | Front Bays: Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) drives max 122.88 TB Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 245.76 TB Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 368.34 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives + 8 x 2.5-inch NVMe (SSD) drives max 368.34 TB Rear Bays: Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB |
| Power Supplies | 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant |
| Cooling Options | Air cooling Optional Direct Liquid Cooling (DLC)* Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. |
| Fans | Standard (STD) fans Up to 6 sets hot plug fans |
| Dimensions and Weight | Height – 86.8 mm (3.41 inches) Width – 482 mm (18.97 inches) Depth – 883.2 mm (34.77 inches) with bezel 869.2 mm (34.22 inches) without bezel |
| Form Factor | 2U rack server |
| Embedded Management | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Quick Sync 2 wireless module |
| Bezel | Optional LCD bezel or security bezel |
| OpenManage Software | CloudIQ for PowerEdge plug-in OpenManage Enterprise OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin |
| Mobility | OpenManage Mobile |
| OpenManage Integrations | BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow Red Hat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC | 2 x 1 GbE LOM card (optional) |
| Network Options | 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
| GPU Options | N/A |
| Ports | Front Ports: 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports: 1 x Dedicated iDRAC Ethernet port 1 x USB 3.0 1 x USB 2.0 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports: 1 x USB 3.0 (optional) |
| PCIe | Up to eight PCIe slots: Slot 1: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length Slot 2: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length Slot 3: 1 x16 Gen5 Low profile, Half length Slot 4: 1 x16 Gen5 Full height, Half length Slot 5: 1 x16 Gen5 Full height, Half length Slot 6: 1 x16 Gen5 Low profile, Half length Slot 7: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length Slot 8: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi For specifications and interoperability details, see Dell.com/OSsupport. |
| OEM-ready Version Available | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com > Solutions > OEM Solutions. |
